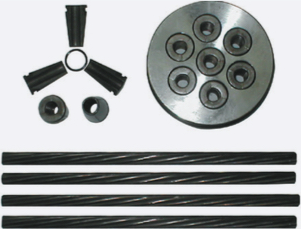

앵커 강연선 제원표U-Turn Removable Anchor

  • SAMJ 12.7mm[KS D 7002]
    규격 사용본수 극한하중 (ton) 항복하중 (ton) 설계허용하중 (ton)
    가설 영구
    SAMJ-3 3 56.10 47.70 36.48 33.66
    SAMJ-4 4 74.80 63.60 48.64 44.88
    SAMJ-5 5 93.50 79.50 60.80 56.10
    SAMJ-6 6 112.20 95.40 72.96 67.32
    SAMJ-7 7 130.90 111.30 85.12 78.54
    SAMJ-8 8 149.60 127.20 97.28 89.76
    SAMJ-9 9 168.30 143.10 109.44 100.98
    SAMJ-10 10 187.00 159.00 121.60 112.20
    SAMJ-11 11 205.70 174.90 133.76 123.42
    SAMJ-12 12 224.40 190.80 145.92 134.64
    SAMJ-13 13 243.10 206.70 158.08 145.86
    SAMJ-14 14 261.80 222.60 170.24 157.08
항복하중 (ton) 설계허용하중 (ton)
가설 영구
15.9ton 극한하중(18.7ton)의 65% = 12.16ton 극한하중(18.7ton)의 60% = 11.22ton

※ 표이외의사양은별도협의요망

  • SAMJ 15.2mm[KS D 7002]
    규격 사용본수 극한하중 (ton) 항복하중 (ton) 설계허용하중 (ton)
    가설 영구
    SAMJ-3 3 79.80 67.80 51.87 47.88
    SAMJ-4 4 106.40 90.40 69.16 63.84
    SAMJ-5 5 133.00 113.00 86.45 79.80
    SAMJ-6 6 159.60 135.60 103.74 95.76
    SAMJ-7 7 186.20 158.20 121.03 111.72
    SAMJ-8 8 212.80 180.80 138.32 127.68
    SAMJ-9 9 239.40 203.40 155.61 143.64
    SAMJ-10 10 266.00 226.00 172.90 159.60
    SAMJ-11 11 292.60 248.60 190.19 175.56
    SAMJ-12 12 319.20 271.20 207.48 191.52
    SAMJ-13 13 345.80 293.80 224.77 207.48
    SAMJ-14 14 372.40 316.40 242.06 223.44
항복하중 (ton) 설계허용하중 (ton)
가설 영구
22.6ton 극한하중(26.6ton)의 65% = 17.29ton 극한하중(26.6ton)의 60% = 15.96ton

※ 표이외의사양은별도협의요망
